Model window

General Description

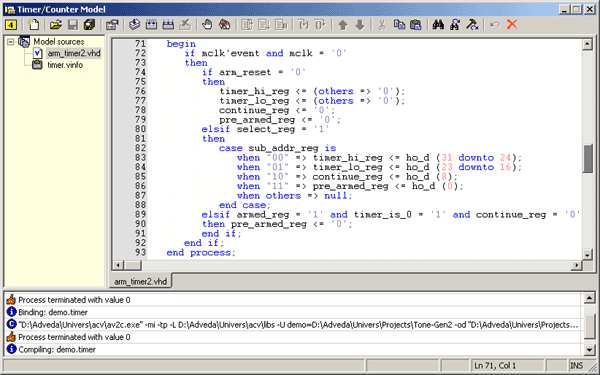

The model window is used to view and/or to develop HDL source code. This window is very similar to the application window for software development.

Both Verilog and VHDL is fully supported by tool chains, which are accessible by compile and build buttons on the toolbar of the Model window. Building the code is a three step process:
1. The HDL source files are compiled to a fast executing C++ model.
2. The C++ model is compiled to a shared object.
3. The shared object is loaded.
Note: These tools are also accessable from the command line.





Features

Develop and build HDL source code
Context sensitive popup window
Compile settings per source file
Attach VHDL or Verilog tool chain by a user configurable XML file
User definable pre-steps and post-steps per tool chain step
